Replacement and Adjustment
Electrical Components
PSU Cooling Fan
Remove the left cover. (
Left Cover
)

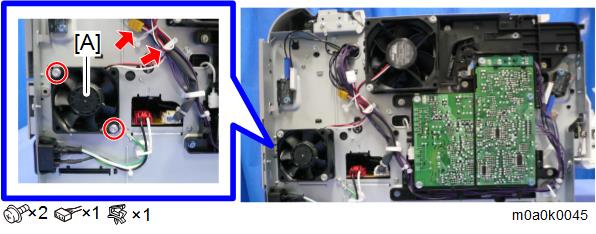

Remove the PSU cooling fan [A].
When you reattach the PSU cooling fan, the face of the fan with the sticker must be on the inside.
