Replacement and Adjustment
Drive Units
Bypass Bottom Plate Clutch
Remove the right cover. (
Right Cover
)

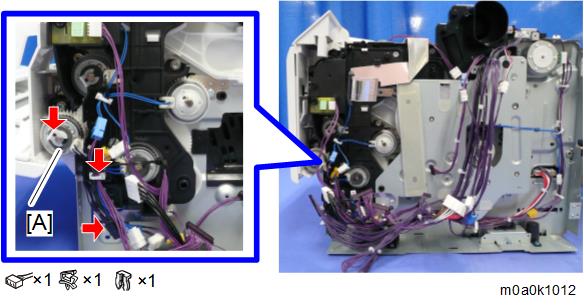

Remove the bypass bottom plate clutch [A].
