1. Remove the bypass feed unit. (Bypass Feed Unit)
  2. Remove the gear unit. (Gear Unit)

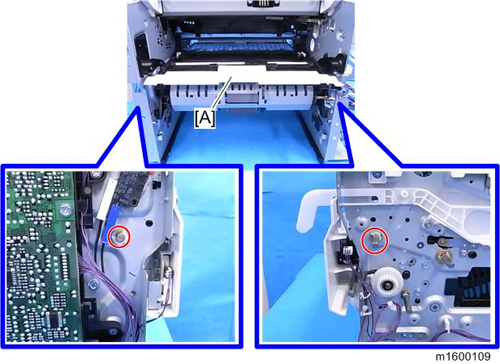

  3. Remove the x2, Bearing x2 on both sides of the bypass feed roller (guide) [A].

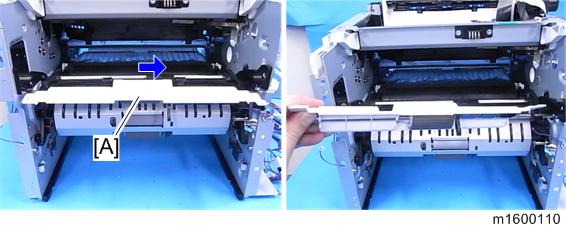

  4. Slide the bypass feed guide [A] with the bypass feed roller to the right to detach it from the machine.
  5. Detach the bypass feed roller with the shaft [B] from the guide [A].
  6. Separate the bypass feed roller [A] from the shaft (Hook x1)
