Replacement and Adjustment
Fusing
Fusing Pressure Roller
Separate the fusing unit into the upper and lower fusing units. (
Upper Fusing Unit, Lower Fusing Unit
)

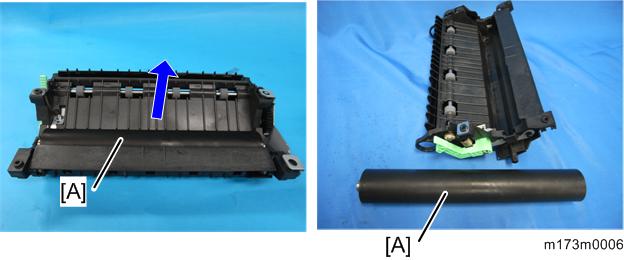

Remove the fusing pressure roller [A]
