- Remove the front cover. (Front Cover Unit)
- Remove the left cover. (Left Cover)
- Remove the right cover. (Right Cover)
- Remove the bypass bottom plate clutch. (Bypass Bottom Plate Clutch)
Remove the bypass feed unit [A]. (
x5,
x2)

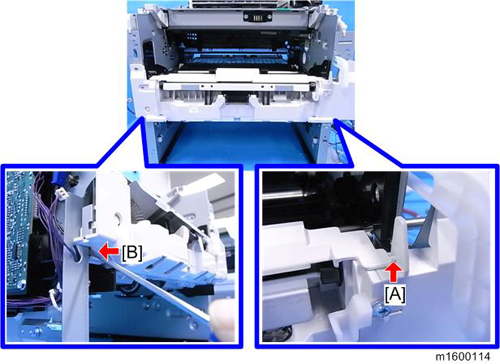

- Release the hook [A] and then insert a flat-blade screwdriver into the space [B] to detach the bypass feed unit from the machine.
- Release the hook [A] and then insert a flat-blade screwdriver into the space [B] to detach the bypass feed unit from the machine.
