Replacement and Adjustment
SPDF
Original Feed Unit

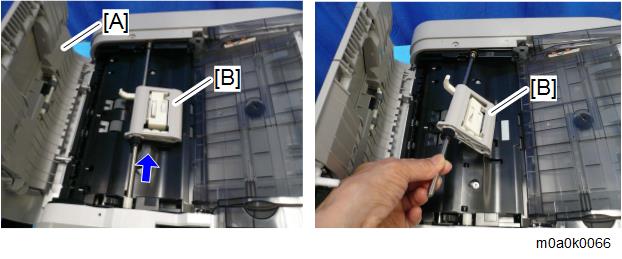

Open the SPDF top cover [A].
Slide the original feed unit [B] towards the rear to remove it.
