Replacement and Adjustment
SPDF
SPDF Feed Sensor
Remove the SPDF top cover. (
SPDF Top Cover
)
Remove the SPDF feed sensor bracket [A].

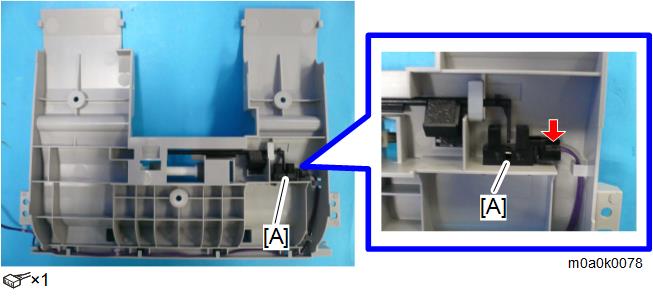

Remove the SPDF feed sensor [A].
