Replacement and Adjustment
Paper Transport
Paper Overflow Sensor
Remove the upper cover. (
Upper Cover
)

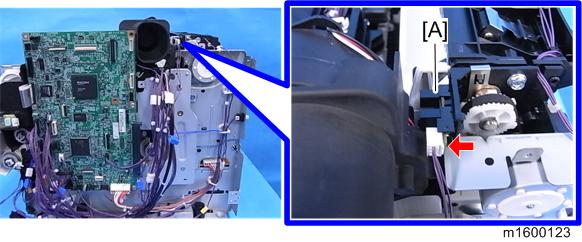

Remove the paper overflow sensor [A]. (
x1, Hook)
