Replacement and Adjustment
Drive Units
Relay Clutch
Remove the bypass feed unit. (
Bypass Feed Unit
)
Remove the gear unit. (
Gear Unit
)

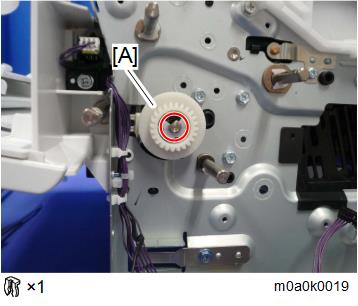

Remove the relay clutch [A].
