Replacement and Adjustment
Exterior Covers
Left Cover

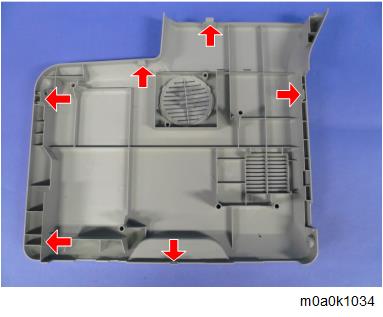

There are six tabs on the back of the left cover.
Open the front cover.
Open the rear cover.

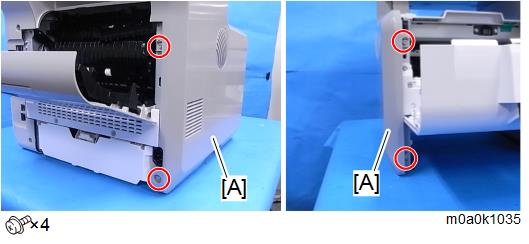

Remove the left cover [A].
