Replacement and Adjustment
Drive Units
Paper Feed Clutch
Remove the BiCU. (
BiCU
)
Remove the sheet [A].

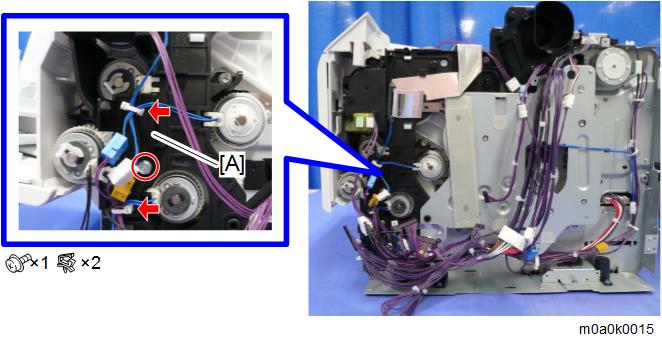

Remove the harness guide [A].

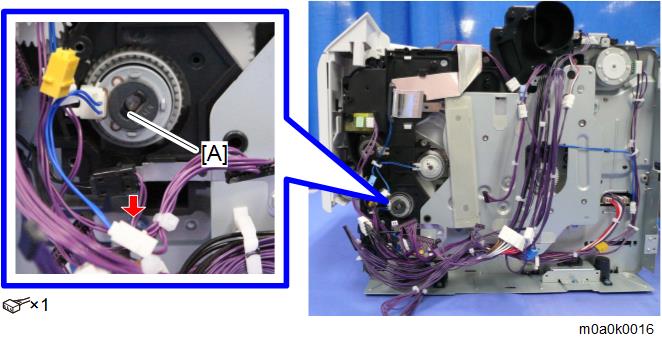

Remove the paper feed clutch [A].
