1. Remove the scanner upper cover. (Scanner Upper Cover)

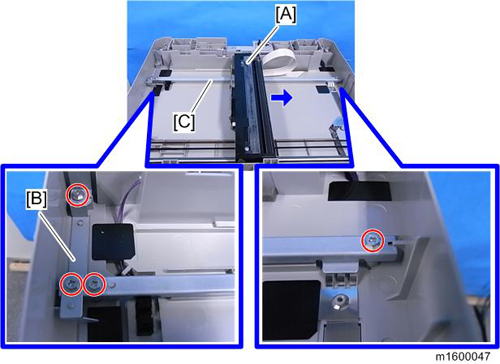

  2. Move the carriage [A] to the middle of the scanner unit.
  3. Remove the bracket [B] and rail [C]. (x4)

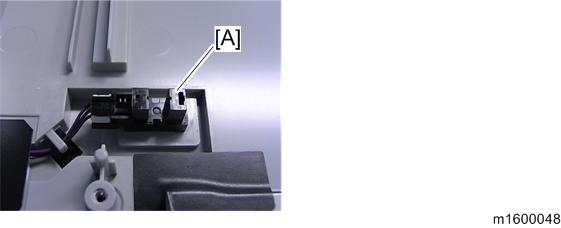

  4. Remove the carriage unit HP sensor [A]. (x1, Hook)
