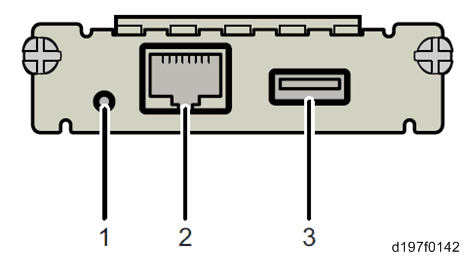

No. | Item | Description |
|---|---|---|
1 | Switch | Use to reset to the factory settings. |
2 | Ethernet port | Use to connect the Ethernet cable. |
3 | USB port | Use to connect this option to the main machine. Do not use this port with other options. |

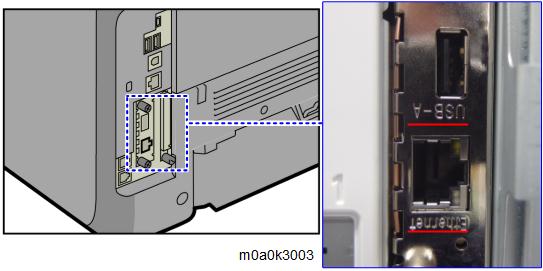

- When installing the USB device server option, make sure that the labels 'USB-A' and 'Ethernet' are upside down.
