Replacement and Adjustment
SPDF
SPDF Friction Pad
Remove the original feed unit. (
Original Feed Unit
)

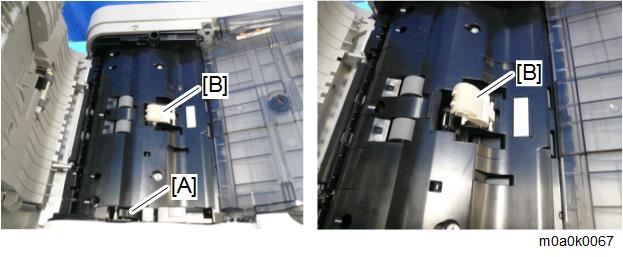

Push the lever [A] and then remove the SPDF friction pad [B].
