Replacement and Adjustment
SPDF
SPDF Top Cover
Remove the SPDF rear cover. (
SPDF Rear Cover
)

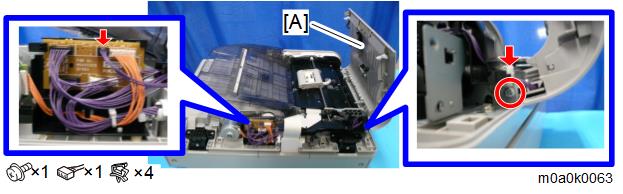

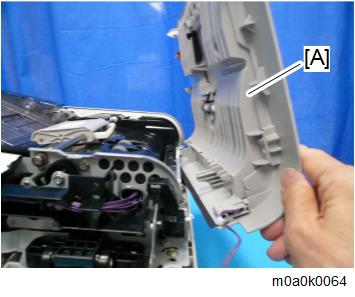

Remove the SPDF top cover [A].
