Replacement and Adjustment
SPDF
SPDF Front Cover

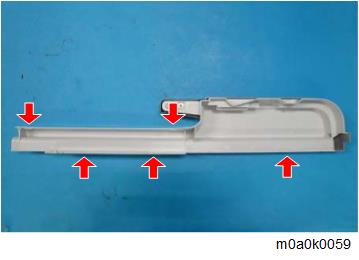

There are five tabs on the back of the SPDF front cover.

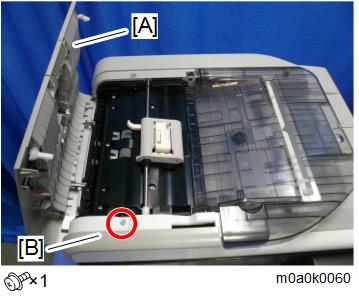

Open the SPDF top cover [A].
Remove the SPDF front cover [B].
