When installing this option, turn OFF the main power and unplug the power cord from the wall socket. If installing without turning OFF the main power, an electric shock or a malfunction may occur.

  • There are four tabs on the back of the right cover.

  1. Open the front cover.
  2. Open the rear cover.
  3. Remove the right cover [A].
  4. Remove the controller box cover [A].
  5. Remove the standard HDD installed on the machine.
  6. Separate the standard HDD [A] from the bracket [B].

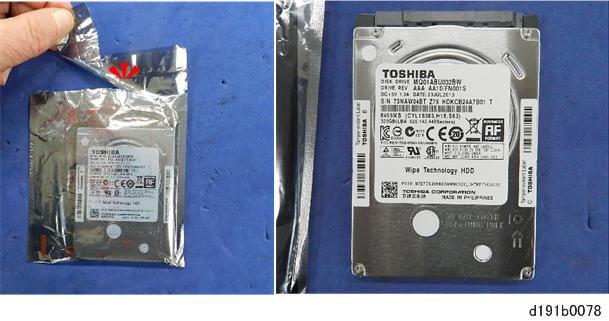

  7. Remove the enhanced security HDD from its protective pack.
  8. Fasten the HDD to the bracket. ( x 4)
  9. Install the HDD bracket in the controller box.
  10. Reassemble the machine.
