Replacement and Adjustment
Image Transfer
Image Transfer Roller
Remove the PCDU. (
PCDU
)

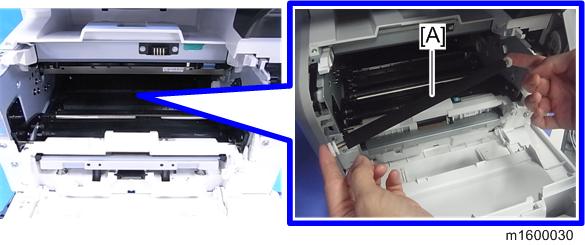

Pinch both green ends of the guide [A] and pull it towards you.
Remove the image transfer roller [A].
