Replacement and Adjustment
Drive Units
Registration Clutch
Remove the BiCU. (
BiCU
)

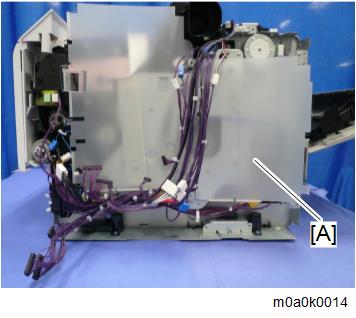

Remove the sheet [A].

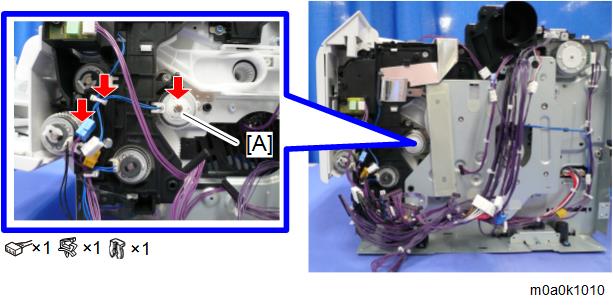

Remove the registration clutch [A].
