1. Remove the PSU. (PSU)
  2. Remove the duplex clutch. (Duplex Clutch)
  3. Open the duplex exit guide plate [A].
  4. Remove the screws circled in the picture below (x5).
    [A]: Duplex exit guide unit

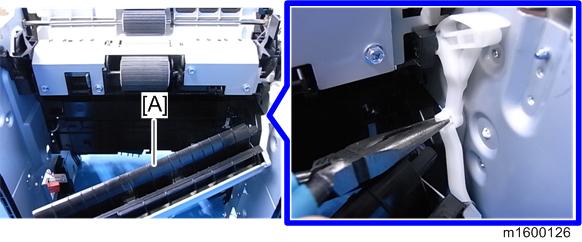

  5. Release the link to remove the duplex exit guide unit [A].

    • Use pliers to pinch the link in order to release it.

  6. Remove the duplex entrance sensor [A]. (x1, Hook)
