1. Remove the gear unit (Gear Unit)
  2. Remove the temperature/humidity sensor (Temperature/Humidity Sensor)

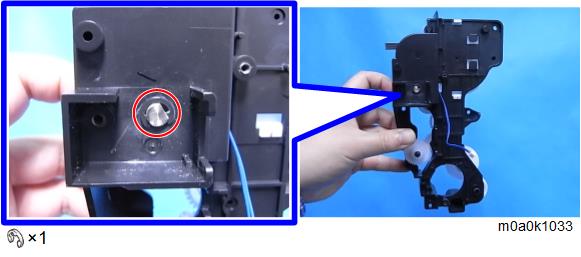

  3. Remove the E-ring.
  4. Remove the toner supply clutch [A] with shaft. (Gear x1)
  5. Remove all parts attached to the toner supply clutch [A]. (Gear x1, Shaft x1)
