Replacement and Adjustment
Electrical Components
Toner End Sensor
Remove the left cover. (
Left Cover
)

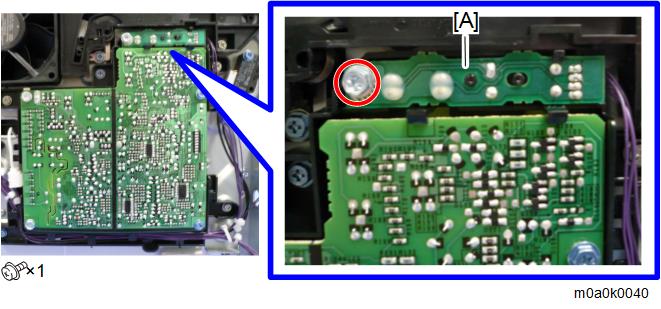

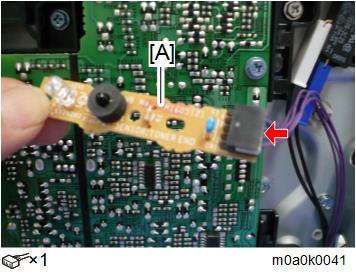

Remove the toner end sensor [A].
