Troubleshooting
Troubleshooting
Registration Adjustment
Print Area
Check that the adjustment meets the product specification.

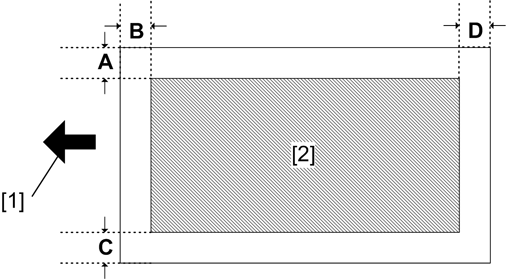

[1]: Paper feed direction
[2]: Print area
