1. Remove the scanner upper cover. (Scanner Upper Cover)

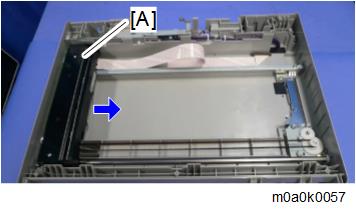

  2. Move the carriage [A] to the right.

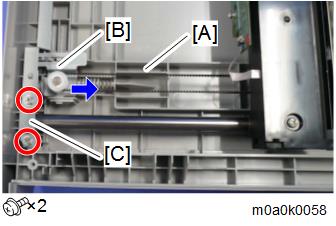

  3. Slide the bracket [B] as shown below to detach the belt [A] from the pulley.
  4. Remove the bracket [C].

  5. Remove the carriage [A]. (x1)

    • In the area [C], the flat cable [B] is fixed with double-sided tape. Do not try to strip the flat cable [B] off by force.

  6. Remove the shaft [B] from the carriage [A].
