Troubleshooting
Jam Detection
Jam Displays

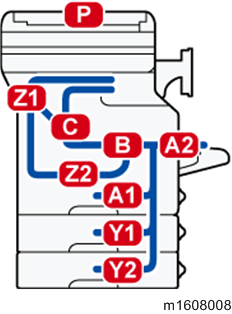

When a jam occurs, the location is displayed on the operation panel.
