Installation
IEEE 802.11 Interface Unit Type M24 (M500-08)
Accessory Check
No.
Description
Q’ty
1

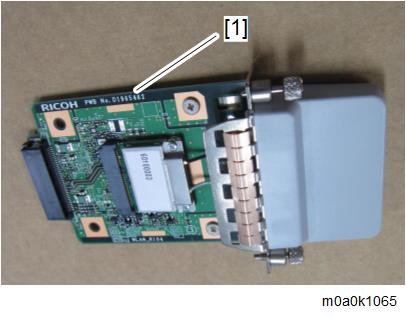

IEEE 802.11 Interface board
1
