Replacement and Adjustment
Electrical Components
DC Switch
Remove the bypass feed unit. (
Bypass Feed Unit
)

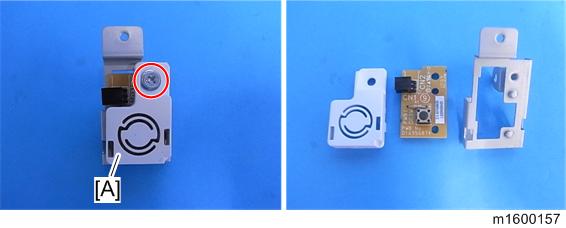

Remove the DC Switch [A] with bracket. (
x1)
Remove the DC Switch from the bracket [A]. (
x1)
