Replacement and Adjustment
SPDF
SPDF Top Cover Sensor
Remove the SPDF front cover. (
SPDF Front Cover
)

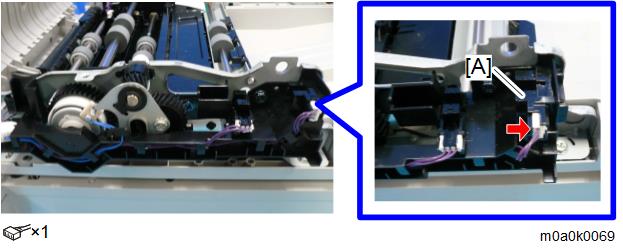

Remove the SPDF top cover sensor [A].
