Replacement and Adjustment
Scanner
SPDF Open/Closed Sensor
Remove the scanner upper cover. (
Scanner Upper Cover
)

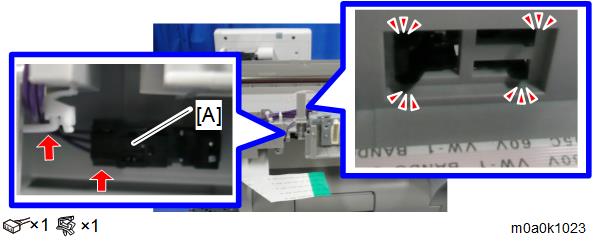

Remove the SPDF open/closed sensor [A].
