Replacement and Adjustment
Paper Feed
Paper Feed Roller
Remove the paper feed tray. (
Paper Feed Tray
)

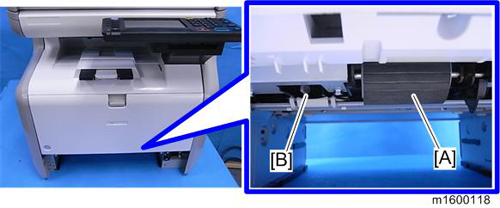

Slide the lever [B] to the left to detach the paper feed roller [A].
