1. Open the SPDF [A].

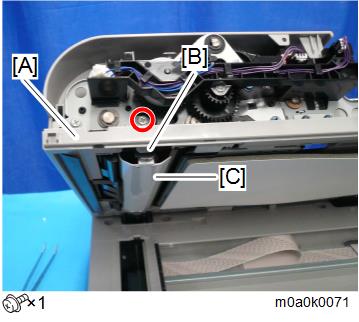

  2. Remove the plate [B] to remove the scanning guide plate [C].

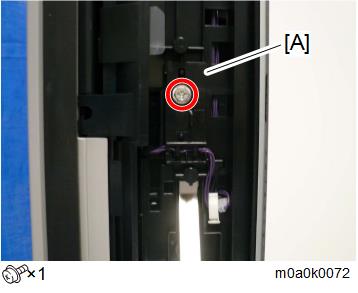

  3. Remove the SPDF registration sensor with bracket [A].

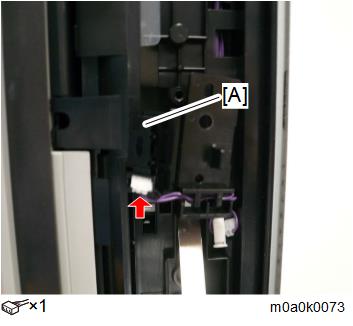

  4. Remove the registration sensor [A] from the bracket.
