The toner cartridge is mounted on the PCDU installed in the machine, but can be detached from the machine on its own.

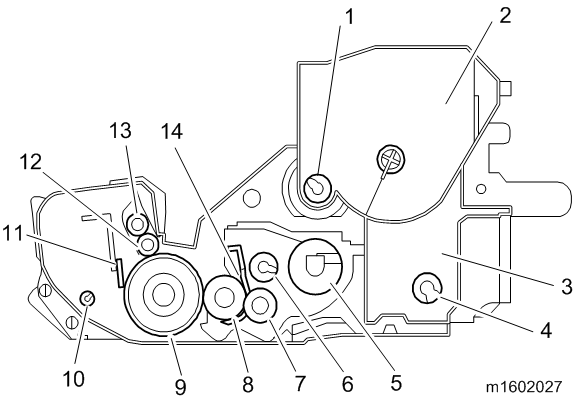

  1. Toner Supply coil
  2. Toner box
  3. Used toner collection box
  4. Used toner transport coil
  5. 1st Mixing coil
  6. 2nd Mixing coil
  7. Toner Supply Roller
  8. Development Roller
  9. OPC
  10. Waste Toner Collection coil
  11. OPC Cleaning Blade
  12. Charge Roller
  13. Charge Cleaning Roller
  14. Development Blade
