- Remove the upper cover. (Upper Cover)
- Remove the upper inner cover. (LED Unit)
- Disconnect the harness of the junction gate solenoid. (
x3)
Remove the connector of the junction gate solenoid. (
x1)

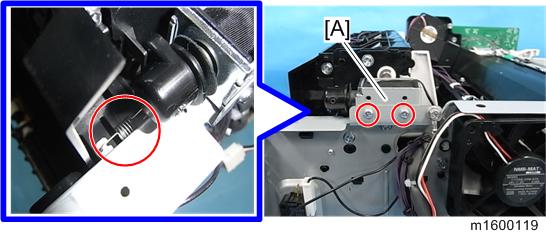

- Remove the junction gate solenoid [A]. (
x2, Spring x1)
