Thermistor

1. Separate the fusing unit into the upper and lower fusing units. (Upper Fusing Unit, Lower Fusing Unit)
2. Remove the hot roller. (Fusing Lamp, Hot Roller)

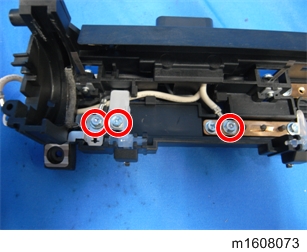

3. Remove the screws of the harness. (x3)

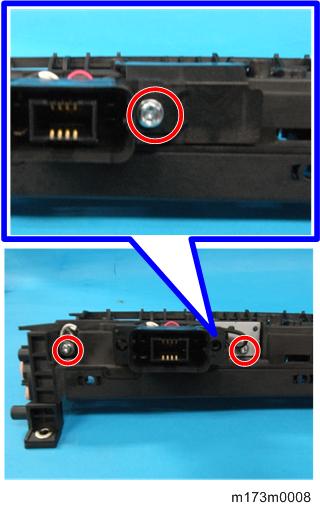

4. Remove the bracket of the drawer connector, and then remove the screws of the thermistor. (x3)

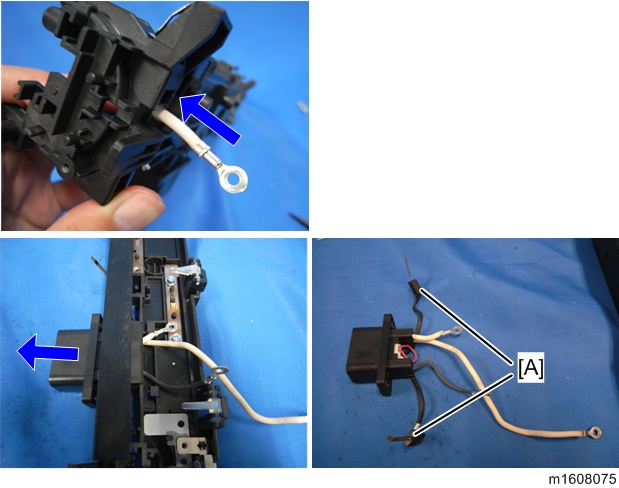

5. Remove the thermistor [A]


Notes on reassembly

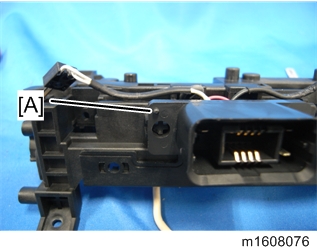

Be sure to attach the drawer connector with its protruding part [A] in the position shown below.

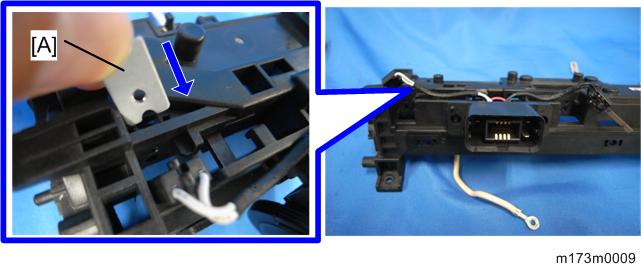

Insert the flat nut [A]. Be sure not to drop them inside the fusing unit during disassembly.
