1. Remove the fusing unit. (Fusing Unit)

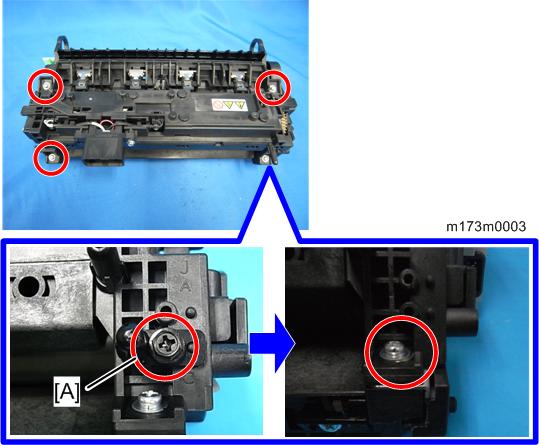

  2. Remove the screws of the fusing unit. (x5)

    • When reassembling, be sure to attach the pin [A] to the correct position. If not, the fusing unit cannot be attached to the mainframe correctly.

  3. Separate the fusing unit into the upper and lower fusing units.

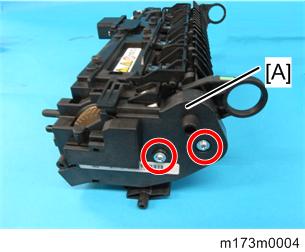

  4. Right cover [A] (x2)

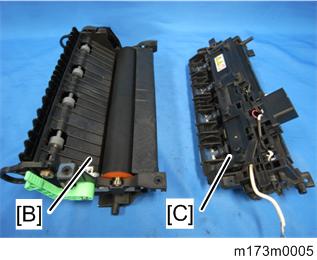

    [B]: Lower Fusing Unit
    [C]: Upper Fusing Unit

  • You can rejoin the upper and lower fusing units easily by lowering the envelope lever.
