Replacement and Adjustment
SPDF
SPDF Original Set Sensor
Remove the SPDF front cover. (
SPDF Front Cover
)

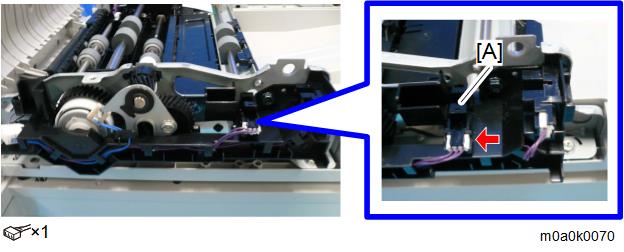

Remove the SPDF original set sensor [A].
