Installation
IEEE 1284 Interface Board Type M19 (D3C0-17)

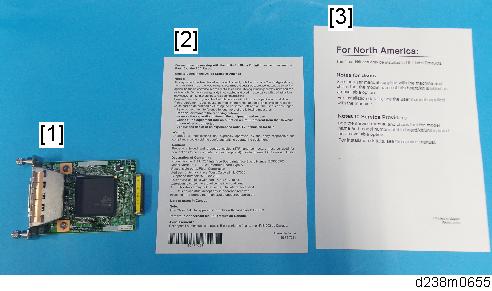

Accessories
No.
Description
Qty
1
IEEE 1284 Interface board
1
2
FCC document
1
3
Notes for Users
1
