- Remove the bypass feed unit. (Bypass Feed Unit)

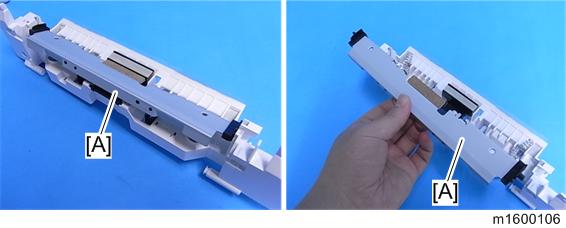

Remove the bottom plate [A].
- If you cannot remove the bottom plate because the part [A] prevents the cam [B] from releasing, rotate the shaft [C] to move the cam [B] away from the bottom plate link [A].
- If you cannot remove the bottom plate because the part [A] prevents the cam [B] from releasing, rotate the shaft [C] to move the cam [B] away from the bottom plate link [A].

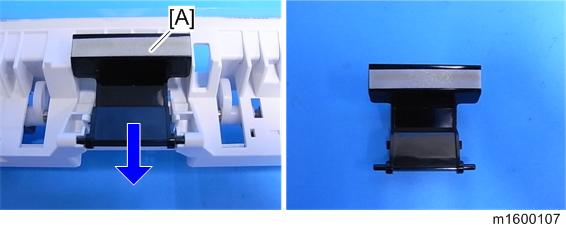

- Push the friction pad [A] down to detach it. (Spring x1)
