Replacement and Adjustment
Paper Feed
Paper Size Switch
Remove the right cover. (
Right Cover
)

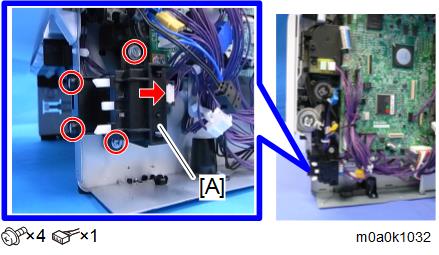

Remove the bracket with paper size switch [A].

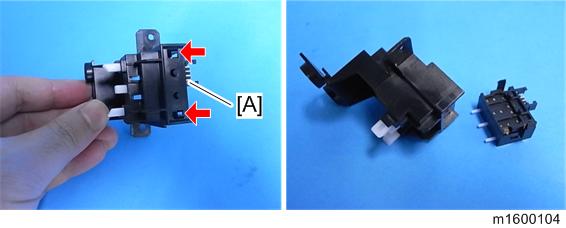

Remove the paper size switch [A] from the bracket.
Expand All
