Replacement and Adjustment
Electrical Components
HVPS with Bracket
Remove the left cover. (
Left Cover
)

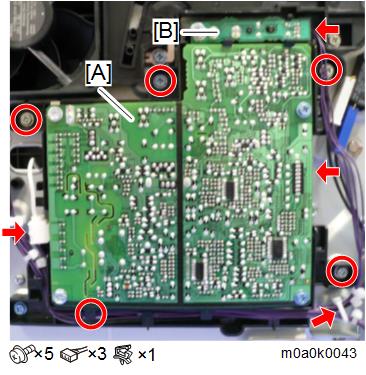

Remove the toner end sensor [B] and HVPS [A] with bracket.
