Replacement and Adjustment
Paper Feed
Friction Pad
Remove the paper feed tray. (
Paper Feed Tray
)

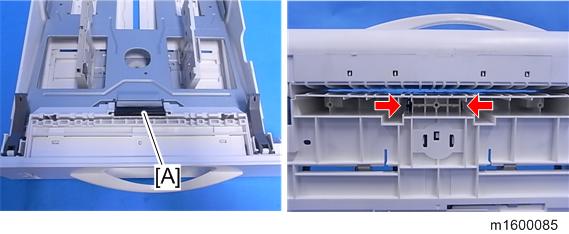

Release the hooks on the bottom of the paper feed tray to detach the friction pad [A].
