After machine power is turned on, the fusing lamp operates until the temperature reaches pre-rotation temperature.
Then, the hot roller rotates to heat its surface evenly and raise fusing temperature to the reload temperature.
The hot roller lamp stays on until the thermistor detects the Standby Mode [B] temperature. The lamp turns on/off to keep this temperature. To print, the temperature is increased to the Print Mode [C] temperature.
After printing, the hot roller rotates (pre-rotation) to prevent overshooting after printing.

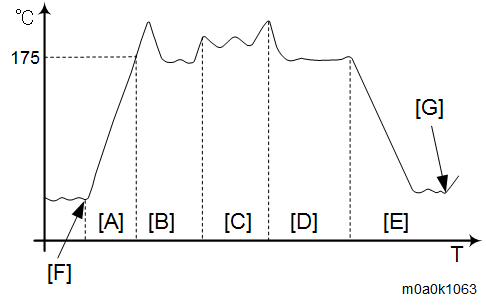

[A] : Warming Up Mode
[B] : Standby Mode
[C] : Print Mode
[D] : Standby Mode
[E] : Energy Saver Mode
[F] : Power On
[G] : Job In
The fusing temperature in each mode is as follows:
Status | Temperature (Celsius) | |
|---|---|---|
Standby Mode | 175 | |
Energy Saver Mode | Ambient temperature | |
Print Mode | Plain paper 1 | 178 |
Plain paper 2 | 183 | |
Middle Thick | 187 | |
Thick Paper 1 | 192 | |
Thick Paper 2 | 189 | |
Thin Paper | 168 | |
Envelopes | 200 | |
Post Cards | 195 | |
Recycled Paper | 178 | |
The fusing temperature, except for that of the Energy Saver mode, can be adjusted in the SP mode.
