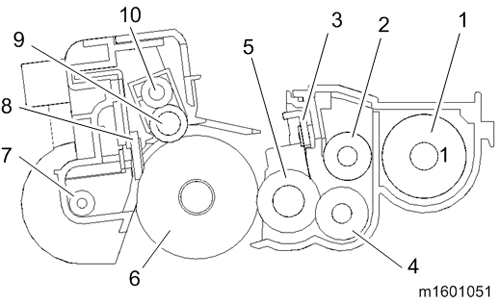

The PCDU section consists of four mechanisms: charge, photoconduction, development, and cleaning. It does not have an antistatic mechanism.

  1. 1st Mixing coil
  2. 2nd Mixing coil
  3. Development Blade
  4. Toner Supply Roller
  5. Development Roller
  6. OPC
  7. Waste Toner Collection coil
  8. OPC Cleaning Blade
  9. Charge Roller
  10. Charge Cleaning Roller
