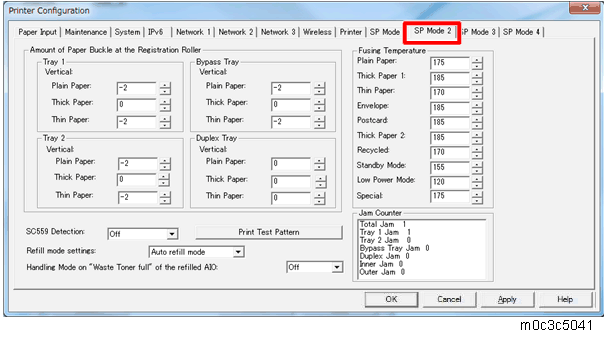

GroupItemRemarks

Amount of Paper Buckle at the Registration Roller: Tray 1

Vertical: Plain Paper

Adjusts the amount of paper buckle at the registration roller for each tray and paper type.

[-8 to 8 / -2* / 1 mm/step]

Vertical: Thick Paper[-8 to 8 / 0* / 1 mm/step]
Vertical: Thin Paper[-8 to 8 / -2* / 1 mm/step]
Amount of Paper Buckle at the Registration Roller: Tray 2Vertical: Plain Paper[-8 to 8 / -2* / 1 mm/step]
Vertical: Thick Paper[-8 to 8 / 0* / 1 mm/step]
Vertical: Thin Paper[-8 to 8 / -2* / 1 mm/step]
Amount of Paper Buckle at the Registration Roller: Bypass TrayVertical: Plain Paper[-8 to 8 / -2* / 1 mm/step]
Vertical: Thick Paper[-8 to 8 / 0* / 1 mm/step]
Vertical: Thin Paper[-8 to 8 / -2* / 1 mm/step]
Amount of Paper Buckle at the Registration Roller: Duplex TrayVertical: Plain Paper[-8 to 8 / 0* / 1 mm/step]
Vertical: Thick Paper[-8 to 8 / 0* / 1 mm/step]
Vertical: Thin Paper[-8 to 8 / 0* / 1 mm/step]
Fusing TemperaturePlain Paper

Adjusts the fusing temperature for each paper type.

[150 to 200 / 175* / 1°C/step]

Thick Paper 1[170 to 200 / 185* / 1°C/step]
Thin Paper[155 to 180 / 170* / 1°C/step]
Envelope[170 to 200 / 185* / 1°C/step]
Thick Paper 2[175 to 200 / 185* / 1°C/step]
Recycled[160 to 180 / 170* / 1°C/step]
Standby Mode[120 to 175 / 155* / 1°C/step]
Low Power Mode[80 to 135 / 120* / 1°C/step]
SC559 Detection[On or Off *]
Print Test PatternPrints the test pattern.
Refill Mode Setting

[Auto refill mode */ Pure refill mode]

DFU

Handling Mode on "Waste Toner full" of the refilled AIO

Sets the machine operation at "waste toner full" of the refilled AIO.

[On or Off *]

Jam Counter

Displays Jam Counter for each location.

Total Jam, Tray 1 Jam, Tray 2 Jam, Bypass Tray Jam, Duplex Jam, Inner Jam, Outer Jam

*: Default
