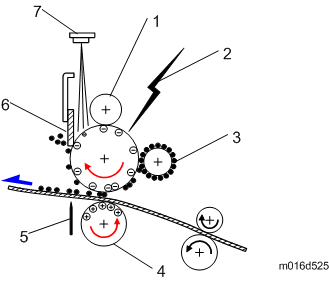

| No. | Note |
|---|---|
| 1. | Drum Charge: The charge roller gives the drum a negative charge. |
| 2. | Laser Exposure: A laser beam writes the print data on the drum. |
| 3. | Toner: The development roller moves toner to the latent image on the drum surface. |
| 4. | Image Transfer: The transfer roller moves the toner from the drum to the paper. |
| 5. | Separation: The separation plate helps to remove the paper from the drum. |
| 6. | Cleaning: The cleaning blade removes remaining toner on the drum surface after the image is moved to the paper. |
| 7. | Quenching: The light from the quenching lamp cancels the charge that stays on the drum. |
