SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
ADF/ARDF Unit (Only MF Models)
ADF Unit (for Four-line LCD Models)
ADF Pick-Up Roller

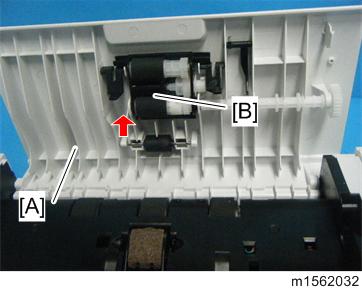

Open the ADF top cover [A].
Remove the ADF feed unit [B] (tab).

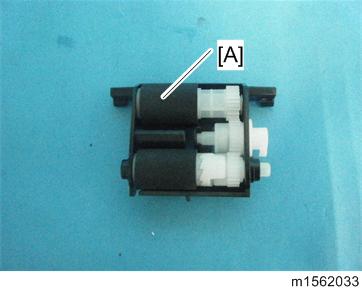

Remove the ADF pick-up roller [A].
