Main Board (MF Four-line LCD Models)

Remove the left cover (Left Cover).

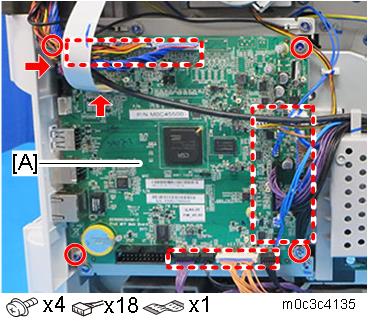

Remove the main board [A].

Disconnect the scanner FFC by pulling it out straight, because it does not have a lock mechanism.
