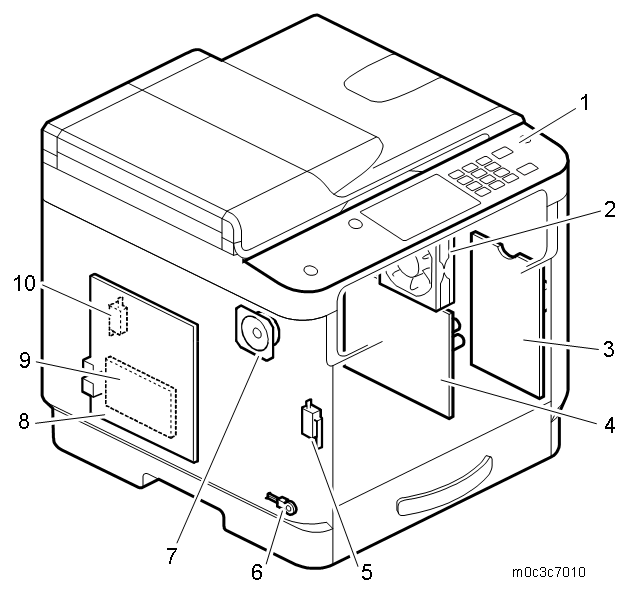

No. | Description | No. | Description |
|---|---|---|---|
| 1 | Operation panel unit | 6 | Environment thermistor |
| 2 | Cooling fan | 7 | Speaker |
| 3 | HVP | 8 | Main board |
| 4 | PSU | 9 | Fax board |
5 | Front cover switch | 10 | Rear cover switch |
No. | Description | No. | Description |
|---|---|---|---|
| 1 | Operation panel unit | 6 | Environment thermistor |
| 2 | Cooling fan | 7 | Speaker |
| 3 | HVP | 8 | Main board |
| 4 | PSU | 9 | Fax board |
5 | Front cover switch | 10 | Rear cover switch |
