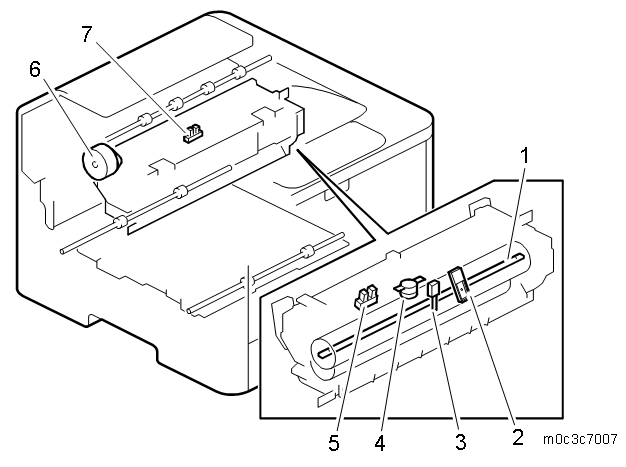

No. | Description | No. | Description |
|---|---|---|---|
| 1 | Fusing lamp | 5 | Paper exit sensor |
| 2 | Non-contact thermistor | 6 | Duplex motor |
| 3 | Fusing thermistor | 7 | Duplex sensor |
| 4 | Thermostat |
No. | Description | No. | Description |
|---|---|---|---|
| 1 | Fusing lamp | 5 | Paper exit sensor |
| 2 | Non-contact thermistor | 6 | Duplex motor |
| 3 | Fusing thermistor | 7 | Duplex sensor |
| 4 | Thermostat |
