SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
ADF/ARDF Unit (Only MF Models)
ADF Unit (for Four-line LCD Models)
ADF Feed Sensor
Remove the ADF drive unit (
ADF Motor
).
Remove the lower guide (
Original Set Sensor
).

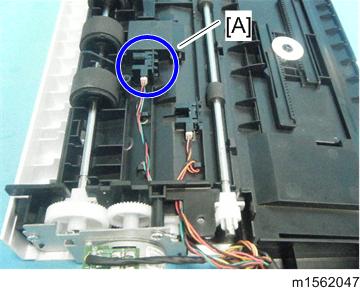

Remove the ADF feed sensor [A] (
x 1).
